Our HD Moving Map provides both an interactive experience and an automated presentation of real time air data directly from the flight deck. By using one of our Airtext interfaces, all of the occupants of your aircraft will have access to Ultra HD maps in addition to information such as

  • Time and Distance to Destination
  • Altitude
  • Position
  • Speed
  • Wind Conditions
  • Relative locator
  • Outside air temperature
  • Local arrival time


 And more

Interactive Mode

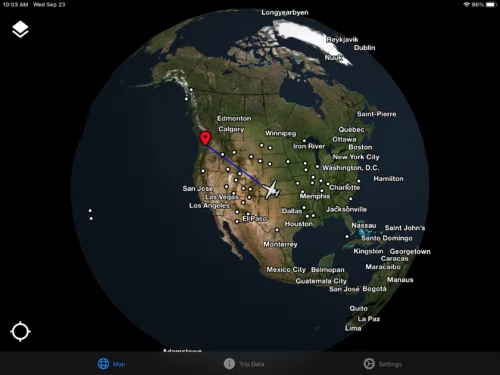

Send Solutions’ HD Map offers passengers the ability to explore the world around them as they fly.  In interactive mode the user will be able to see the current location of the aircraft, the route of flight and destination. For more detailed information the user can select the Trip Data tab at the bottom of the screen to see a detailed view of information directly from the aircraft systems.

Users can click on points of interest, view and hide information layers and view all of this on their own mobile device. The Pairing process is completely automated and does not require anything more than opening the Airtext Map application.

Bulkhead Mode

In Bulkhead mode, the device can be configured to automatically turn itself on and off, display custom messages, and show air data in an easy to read slideshow format. Our iPad mounting solution allows you to mount the device in either a portrait or landscape orientation in order to maximize the use of any size bulkhead or cabin divider.



The Airtext providing the moving map data can be quickly configured for any avionics interface. This saves labor on installation and ensures that the HD Map system will work with everything from the latest in glass cockpit technology to time-tested legacy flight management systems.



We currently interface with

  • Garmin
  • Collins
  • Honeywell
  • Universal



And much more

Custom Welcome Messages

Welcome message is displayed when the aircraft is stationary, this will not show in flight. At a user defined time to destination (default 10 minutes) an additional slide can be displayed on the screen with an image of your choosing. This could be a fasten seatbelt sign or other cabin annunciation.

Company Logos and Custom Pictures

At user defined times an additional slide can be displayed on the screen with an image of your choosing. This could be a company logo, fasten seatbelt sign or other cabin annunciation.

Supported Aircraft Icons

Display Options

10.2” iPad kit complete with a display, mount, and specialized charge cable. The mount itself is made of aircraft grade 5052-H32 aluminum with a flat black powder coat finish. The bezel is retained with a custom magnetic retention system that provides easy access to your device while maintaining a sleek, trimmed out appearance. Designed to be mounted in either portrait or landscape orientations.

For custom configuration of the tablet or bezel, contact Send Solutions at 678-208-3087.

12.9” iPad kit complete with a display, mount, and specialized charge cable. The mount itself is made of aircraft grade 5052-H32 aluminum with a flat black powder coat finish. The bezel is retained with a custom magnetic retention system that provides easy access to your device while maintaining a sleek, trimmed out appearance. This product is designed to be mounted in the landscape orientation.

For custom configuration of the tablet or bezel, contact Send Solutions at 678-208-3087.
